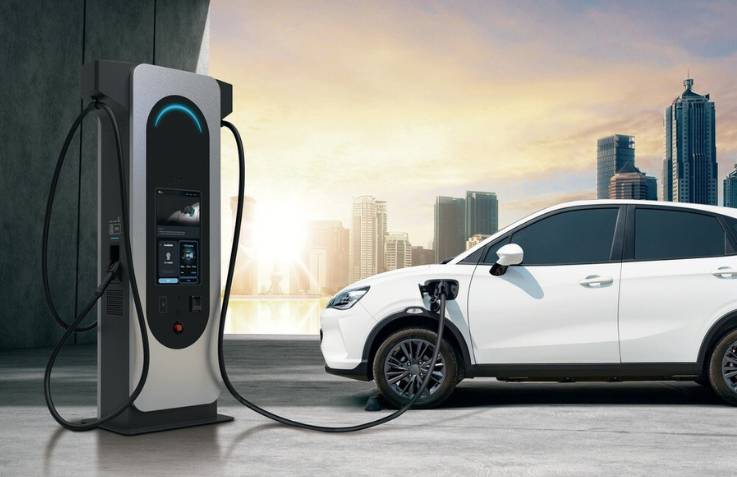

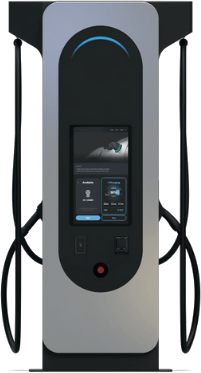

EV Charger Leaflet DC175kW
Specifications
| Electrical Characteristics | Max Output Power | DC 175kW |
| Output Current | Up to 350A | |
| Output Voltage | DC 200 ~ 1,000V | |
| Cable / Connector | Connector Type | CCS1, NACS |
| Cable Length | 18 ft (5.5 m) | |
| Connectivity | Network | Ethernet (10/100 Mb/s) or LTE |
| Protocol | OCPP1.6J (Upgradable to OCPP2.0.1 later) |
|
| Software Update | USB and over-the-air (OTA) available | |
| User Interface | Authentication / Payment | RFID, NFC |
| Payment | Credit Card, Mobile Wallet | |
| Display | 24 inch touch, 1,000 nit brightness, 1,920 × 1,080 FHD resolution |
|
| Status Indication | Color LED, Audio | |
| General Characteristics | Dimension (W x H x D) | 27.2 x 86.6 x 15.7 in (690 x 2,200 x 400 mm) |
| Weight | 617 lbs (280 kg) | |
| Operating Temperature | -31°F ~ 131°F (-35°C ~ 55°C) | |
| Storage Temperature | -40°F ~ 158°F (-40°C ~ 70°C) | |
| Operating Altitude | Up to 6,560 ft (2,000 m) | |
| Humidity | < 95% Relative humidity, non-Condensing |
|
| Enclosure Rating | IP55, NEMA 3R, IK10 (IK08 screen) | |
| Protective Function | Over current, Over voltage, Under voltage, Over temperature, Short circuit, Surge, Ground fault, Emergency stop button, Physical impact, Water leakage, Door open detection, Door lock |
|
| Certification and Standard | UL/cUL, FCC Class A, ISO15118*, NEVI**, NTEP/CTEP**, RoHS, Energy Star**, ADA*** |
|
| Warranty | 2 year standard warranty, additional 1 to 3 years extension available |
|
